Arrow Mount Barn Door Hardware

$188.00 $150.00

GST included.
Will not ship until [19041994]
$188.00 $150.00
Out of stock
SKU: 200501N/AAvailability : Melbourne StockIn StockOut of stock

 Key Features :

  • For both indoor and outdoor uses
  • Heavy-duty and Rust Resistant
  • Suitable for both solid and  hollow core doors
  • Comes with all necessary fittings

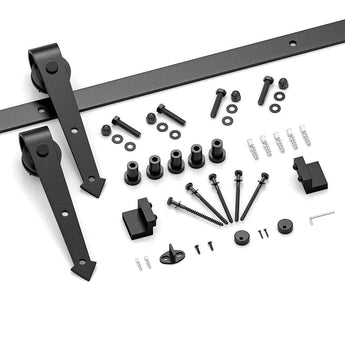

Package Included :

  • Barn Door Hangers and Wheels
  • Stoppers
  • Tracks at length ordered (Jointed)
  • Lag Bolts and Spacers
  • Floor guide to support the bottom of the door
  • Anti-jump disks for keeping roller on rail

Specification :


Colour Black
Material Carbon Steel
Door Weight Capacity Up to 100 kg
Sliding Track Length 1.6m - 6m
Recommended Wood Door Thickness 35mm - 40mm approx



 1. What are the dimensions of the rollers?

         The below picture shows the dimensions of the rollers. When installing the track, the clearance space above the door top is 150mm.

Arrow barn door hardware dimensions of the rollers

  2. What kind of steel do we use for the product?

              We use 6mm extra thick solid steel. The sturdy solid steel increases the weight capacity, the carbon topcoat resists against rust in long time use.

    Arrow barn door hardware dimensions of the rollers

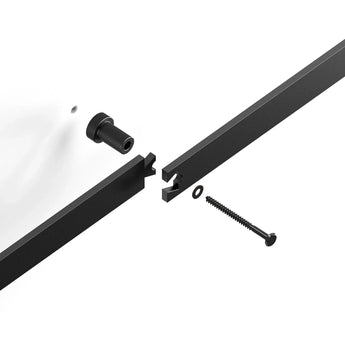

    Track Length( M ) 1.6-2 2.4-3 3.2-4 4.2-5 5.4-6
    NO. of Tracks 2 3 4 5 6



      3. Are the door stoppers adjustable easily?

              For the single door, you get 2 stoppers; and for double doors, you get 4 stoppers in the box. The stoppers can be placed anywhere on the track and they are allen screw adjustable. The two anti-vibration rubbers have been added to each stopper to minimize the collision between the roller and stopper.



    4. Is the floor guide included in the kit and how does it work?

             A T-shape floor guide has been included in the kit, designed for doors with slots at the bottom and it needs to be mounted onto the ground.



            However, if your door doesn't have a slot or you'd like to have the wall mount floor guide, we have the Steel 8 in 1 Floor Guide available to be purchased separately (see product link below).


            Steel Bran Door Floor Guide (8 in 1)--Product Link




    5. How do the soft closes work? Are they necessary?

              For the single door, you get one pair of soft closes; for double doors, you get two pairs of soft closes. They can be easily added onto the track and are allen screw adjustable. When you both open and close the door, the actuators on the door will hit the springs and the door will stop slowly at the end of the track. Based on our experience, we strongly suggest you choose soft close if you have pets or children at home.



    How to choose the right length of the track ?

    Door Opening Width Hardware Track Length
    W<720mm 1.6m
    720mm<W<820mm 1.8m
    820mm<W<920mm 2m
    920mm<W<1020mm 2.4m
    1020mm<W<1120mm 2.4m
    1120mm<W<1220mm 2.6m
    1220mm<W< 1320mm 2.8m
    1320mm<W<1420mm 3m
    1420mm<W<1520mmm 3.2m
    1520mm<W<1620mm 3.4m
    1620mm<W<1720mm 3.6m
    1720mm<W<1820mm 3.8m
    1820mm<W<2000mm 4m
    2000mm<W<2250mm 4.5m
    2250mm<W<2500mm 5m
    2500mm<W<3000mm 6m



     Barn Door Outlet's Hardware Collections :



    barn door outlet hardware collection



    How to mount the hardware onto the plasterboard wall :

    For plasterboard wall ,you will need to add some structural support.Follow these steps to add support to the wall.

    1. Locate the studs with a stud finder
    2. Mount a timber board to the studs
    3. Mount the track to the timber board

    Note:

    • Hardware only, barn door not included.
    • Bulk order discounts ? please contact us at 1300 303 810

      Shipping Information

      • For barn doors, Our standard shipping cost (directly to your door) covers metro areas in QLD, NSW, VIC, SA, and ACT (excluding WA, TAS and NT). For other places, please contact us to get a shipping cost before placing the order.

        The standard shipping rate for one door is $119 or $139 depending on the door size. For each additional door, the shipping cost is added by $40. The shipping cost is capped at $319 or $339 depending on the door size.
      • For handles, locks and accessories, the shipping cost is $10 per order. For orders over $120, it is free shipping.
      • For barn doors, it usually takes 3-5 business days to dispatch.  For hardware, handles and locks, orders will be dispatched in 2-3 business days.
      • The estimated transit time is 5-10 working days for metropolitan and regional areas.  Due to COVID impact, please allow extra days for delivery. The ETA is subject to change depending on the speed of the courier company.
      • If your order both barn doors and hardware, due to the differences in package sizes, we ship them separately. They may arrive on different dates.
      • A physical delivery address and contact number are required for delivery of barn doors. We cannot ship to PO boxes.
      • We offer Free Pick-up for barn doors from our store in Melbourne. You can also arrange the shipping by yourself by selecting the pick-up option when checking out.
