Key Features :
- For both indoor and outdoor uses
- Heavy-duty and Rust Resistant
- Black powder coat
- Door stopper to keep door on rails
- Strong floor guide to stabilise door movement
- Anti-jump pad to prevent hangers from jumping off the track
Specification
| Colour | Black |
| Material | Carbon Steel |
| Door Weight Capacity | Up to 100 kg |
| Sliding Track Length | 1.6m - 6m |
| Recommended Wood Door Thickness | 35mm -40mm approx |

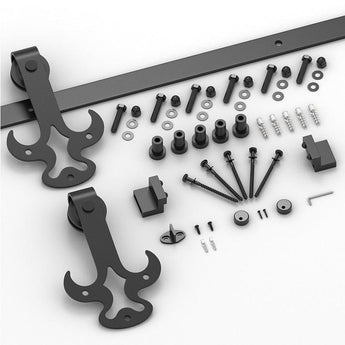

Package Included :
- Track at length ordered（Jointed）
- Barn Door Hangers and Wheels
- Stoppers
- Lag Bolts and Spacers
- Floor guide to support the bottom of the door
- Anti-jump disks for keeping roller on rail
How to choose the right length of the track ?
| Door Opening Width | Hardware Track Length |
| W<720mm | 1.6m |
| 720mm<W<820mm | 1.8m |
| 820mm<W<920mm | 2m |
| 920mm<W<1020mm | 2.4m |
| 1020mm<W<1120mm | 2.4m |
| 1120mm<W<1220mm | 2.6m |
| 1220mm<W< 1320mm | 2.8m |
| 1320mm<W<1420mm | 3m |
| 1420mm<W<1520mmm | 3.2m |
| 1520mm<W<1620mm | 3.4m |
| 1620mm<W<1720mm | 3.6m |
| 1720mm<W<1820mm | 3.8m |
| 1820mm<W<2000mm | 4m |
| 2000mm<W<2250mm | 4.5m |
| 2250mm<W<2500mm | 5m |
| 2500mm<W<3000mm | 6m |
How to mount the hardware onto the plasterboard wall :
For plasterboard wall ,you will need to add some structural support.Follow these steps to add support to the wall.
- Locate the studs with a stud finder
- Mount a timber board to the studs
- Mount the track to the timber board
Note:
- Hardware only, barn door not included.
