## Introduction


Sliding barn doors have become a popular trend in interior design, adding both functionality and a rustic charm to any space. Whether you are considering installing a new barn door or replacing an existing one, it is crucial to understand how to choose the perfect size for your barn door kit. In this comprehensive guide, we will walk you through the process of measuring your door opening correctly and determining the appropriate dimensions for your barn door and track.

Consider Track Placement

barn door

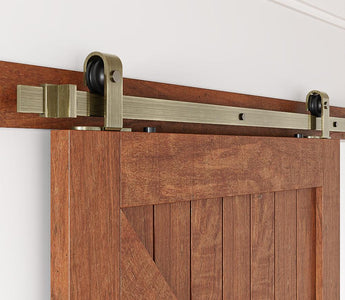

One of the first steps in choosing the right size for your barn door kit is to determine the placement of the track. The track is the horizontal rail that allows the door to slide smoothly across the doorway. It is typically mounted either halfway between the ceiling and the top of the doorway or directly above the door frame. Take a moment to visualize where you want the track to be placed and make a pencil mark on the wall for reference.

Measure Height

barn door

Next, you need to measure the height of your barn door opening. If you plan to mount the track right above the door trim or frame, measure from the floor to the top edge of the trim or frame. Subtract 1 inch from this measurement to ensure that your door can close without scratching the floor. If you plan to mount the track higher than the trim or frame, measure from the floor to the pencil mark on the wall, and also subtract 1 inch. This will give you the ideal height for your barn door.

Determine Door Width

The width of your barn door is another crucial measurement to consider. Start by measuring the width of your door opening. If you have trim or molding around the opening, measure the distance between the outside edges of the trim. To ensure privacy and aesthetics, it is recommended to add at least 1 inch of overlap on each side of the opening or molding. The more overlap you have, the less light and sound will come through the edges of the door. Once you have measured the width of your opening, add 2 inches to that measurement. This additional width will ensure that your door closes properly without any gaps.

Determine Door Height

In addition to width, you also need to determine the height of your barn door. Start by measuring from the floor to the top of the door opening. If you have molding frames, measure from the floor to the outside edge of the frame. Add 1 inch to this measurement to ensure that your door hangs slightly above the floor. This will allow for smooth operation and prevent any scraping or damage to your flooring.

Consider Privacy and Design

barn door

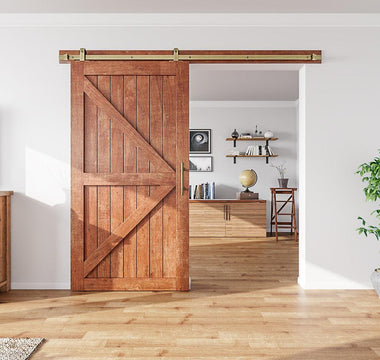

While measuring your barn door opening, it is essential to consider both privacy and design. If you want to create more privacy between rooms, opt for a wider door that allows less light and sound to flow between the spaces. Additionally, consider the overall design and style of your space. Choose a barn door that complements the existing decor and enhances the aesthetic appeal of the room.

Determine Track Length

Once you have determined the dimensions of your barn door, it's time to calculate the track length. For a single sliding door, multiply the width of your door by two. This will give you the minimum track length required. However, you can choose to extend the track length for stylistic reasons if you desire. If you have a double door, the track length should be four times the width of one barn door. Ensure that you have enough wall space on the side of the opening for the door to open completely.

Additional Considerations

When choosing the perfect size for your barn door kit, there are a few additional considerations to keep in mind. Firstly, make sure that the space above the door opening, known as the header, can support the weight of the sliding barn door. There must be a support beam or strong studs in place for anchoring the track. Additionally, check for any obstructions such as light switches, heat registers, or electrical outlets that might interfere with the smooth opening and closing of the door. Make sure to account for these factors when measuring and choosing the size of your barn door.


Choosing the perfect size for your barn door kit is crucial to ensure a seamless installation and optimal functionality. By carefully measuring your door opening, considering privacy and design, and determining the appropriate track length, you can create a stunning and functional barn door that enhances the overall aesthetic of your space. Remember to take into account any additional considerations such as header support and potential obstructions. With these guidelines in mind, you are now ready to select the perfect size for your barn door kit and transform your space with rustic charm and style.
